KL60R Remote-Transmission Density Meter

These instruments are used to monitor the density of SF6 gas in sealed tanks and can be widely used in medium voltage switchgear and RMU.They are applied to indicate the gas density and reliably output SF6 gas density signal for remote monitoring. They can provide multiple solutions to support new substations and the intelligent transformation of existing substations.
KL60R Remote-Transmission Density Meter
  • KL60R Remote-Transmission Density Meter
  • KL60R Remote-Transmission Density Meter
Send Mail PDF Download
Share It :


Application of KL60R Remote-Transmission Density Meter


  • SF6 gas Insulated RMU

  • SF6 gas Insulated Switchgear



Feature of KL60R Remote-Transmission Density Meter


  • Volume minimization,customized installation interface,convenient and reliable.

  • Pressure interface customized in accordance with customer’s demands.

  • Utmost three pairs of switching contacts can be provided according to user’s needs.

  • The RS485 remote function ensures remote monitoring.


Technical Data of KL60R Remote-Transmission Density Meter



Case diameter:Φ64mm
Scale range:1.0 to 2bar abs
Accuracy:

a) At 20°C:   Class 1.0 or 1.5

b) -40°C to +60°C:  Class 2.5

Degree of protection:IP65
Ambient conditions: -40°C to +60°C, relative humidity ≤ 95%RH
Leakage rate: ≤1 × 10-9 Pa·m3/s (Helium leakage inspection)
 Process connection:M24×1.5 (customizable)
Installation method:Radial or Axial
Weight:  0.3kg


Main electrical performance indicators and specifications of the remote transmission part

  • Power supply:     DC 24V

  • Power consumption:  < 2W

  • Communication mode:  RS485

  • Protocol:    ModBus RTU

  • Baud rate:    9600bps



Anti-electromagnetic interference

IEC61000-4-2: level 4 (15kV)
IEC61000-4-3:  level 3 (10V / m)
IEC61000-4-4: level 4 (4kV)
IEC61000-4-5:  level 3 (+/- 2kV)
IEC61000-4-6:  level 3 (10V)
IEC61000-4-8:  level 5 (100A / m)



Options of KL60R Remote-Transmission Density Meter

  • Measuring range

  • Ambient condition

  • Outlet Direction and cable length

  • Installation method

  • Suitable for High-altitude environment

  • Measurement Medium: SF6, Air, N2, SF6 + N2 and other gases


Brands We Cooperate
abb
siemens
schneider
toshiba
hyosung
Pressure Instruments Inquiry
Pictures or documents for technical requirements (optional)
Related Density Meter for Reference

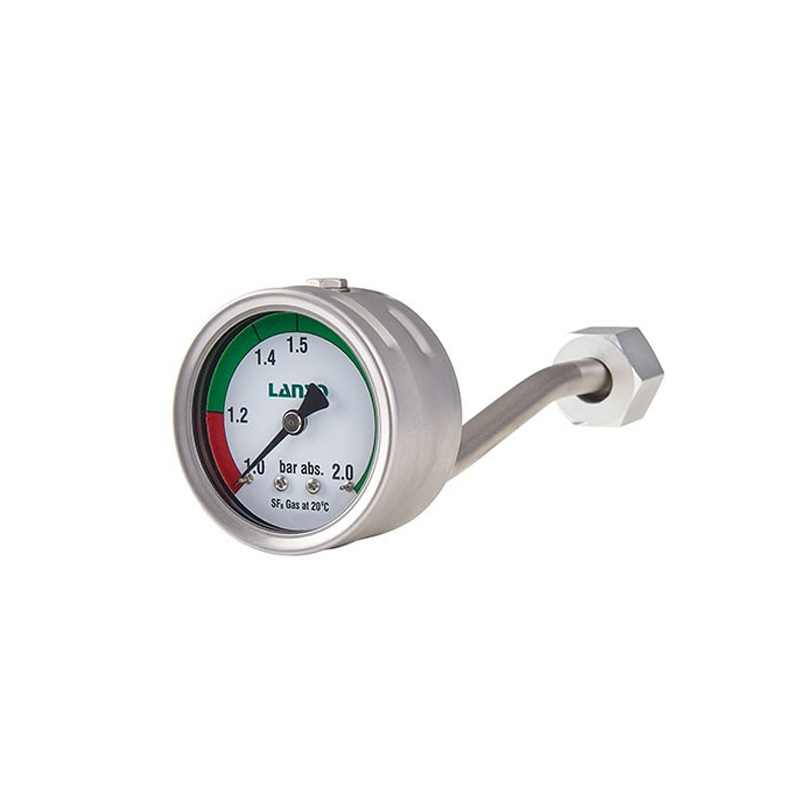

KL60 Density Meter/Pressure Gauge KL60 Density Meter/Pressure Gauge
